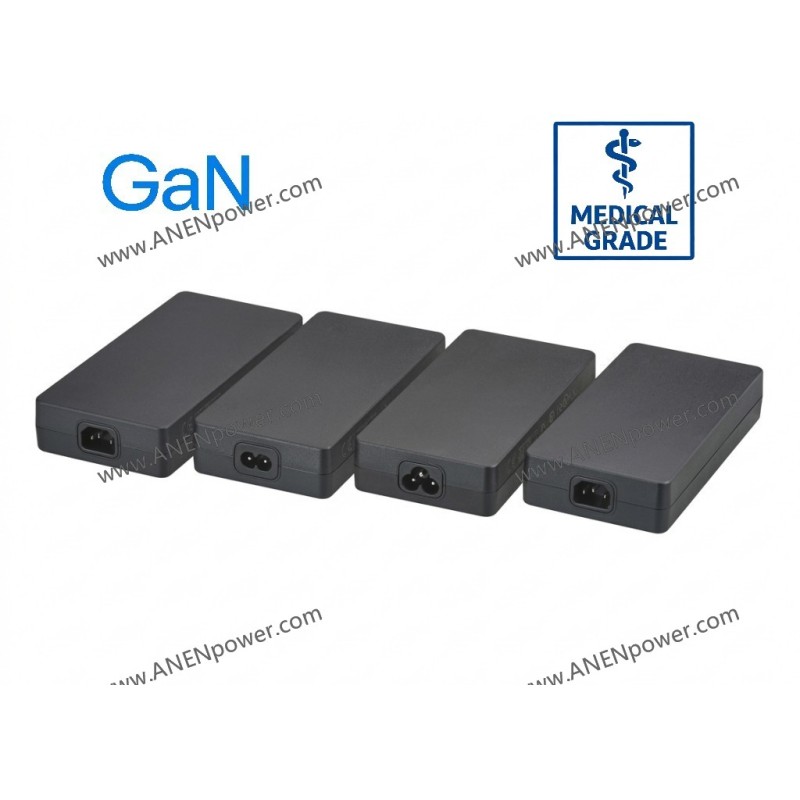

200W GaN Medical Desktop AC/DC Adapter: 24V 8.3A Ultra-High Efficiency
Product Overview
The 200W GaN Medical AC/DC Adapter is a flagship power solution that leverages the superior switching capabilities of Gallium Nitride (GaN) to achieve unmatched power density. Delivering a stable 24V 8.3A output, this unit is specifically engineered to power Advanced Imaging Workstations, Surgical Robotic Consoles, and Large-Scale Diagnostic Displays.
Built to the most rigorous global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture enables 94.5%+ efficiency, which minimizes thermal output in temperature-sensitive clinical environments. With its ultra-low leakage current and superior EMI suppression, it ensures that high-fidelity medical images and sensitive physiological data remain free from electronic artifacts.
Key Specifications
Our 200W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.
-
Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).
-
Total Output Power: 200W Continuous Maximum.
-
Standard Output: 24V 8.3A (Optimized for imaging processors and motorized surgical actuators).
-
Other Available Outputs:
-
12V 15A
-
15V 13.3A
-
19V 10.5A
-
36V 5.5A
-
48V 4.16A
-
54V 3.7A
-
Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).
-
GaN Technology: High-frequency switching for 94.5%+ Efficiency and a sleek, fanless design.
-
Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.
-
Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.
-
AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.
-
MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.
-
Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.
Ideal Applications
The 200W medical-grade output is optimized for high-power diagnostic and surgical electronics:
-
Imaging Workstations: 3D reconstruction consoles, mobile X-ray workstations, and high-performance ultrasound systems.
-
Surgical Equipment: Motorized surgical tables, surgical laser controllers, and robotic surgical interfaces.
-
Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.
-
Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.
-
Diagnostic Displays: Large-format 4K surgical monitors and radiology multi-display hubs.
Professional Safety Suite
-
Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.
-
Imaging-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and sensitive diagnostic images.
-
High-Current Connector Security: Equipped with high-retention, multi-pin DC connectors (e.g., 4-Pin/6-Pin Power DIN) to safely handle the high current without heat buildup or accidental disconnection.
-
Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.
-
Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
